INSTALLATION INSTRUCTIONS FOR SINGLE-RAM POWER TILT SYSTEMS

1. Trim outboard to up position.

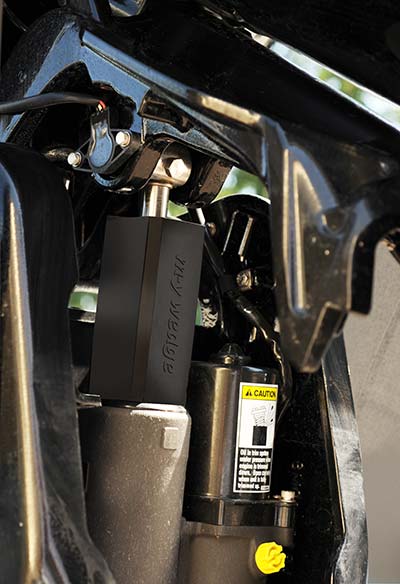

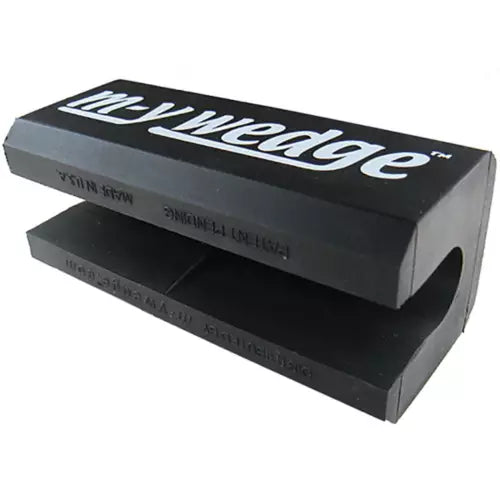

2. Simply push the Universal m-y wedge on the power-tilt rod and it will pop or click into place.
3. Trim outboard down until the rubber begins to compress.
4. To remove Universal m-y wedge simply trim outboard to up position and remove.
5. Store Universal m-y wedge in any boat compartment for convenience.

NOTE: The Universal m-y wedge can be cut to size, if your outboard sits too high or you have problems with tilting your motor high enough to install the unit. Simply cut the Universal m-y wedge using a miter or hack saw. You normally don't need to cut off more than an inch.

WORKS ON:

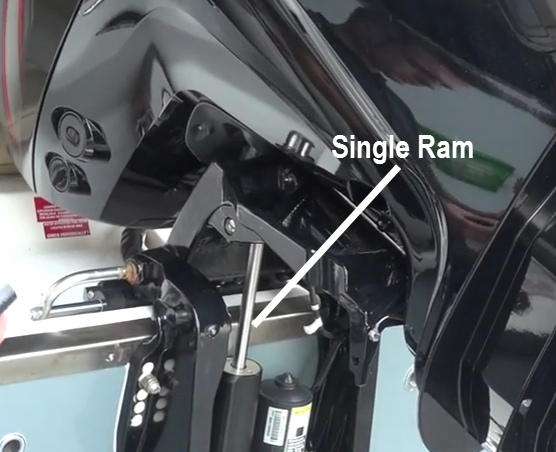

• Mercury with single-ram trim/tilt
• Yamaha with single-ram trim/tilt (Will Not work on Yamaha's new 2023 150HP-250HP outboards, they have a new trim system on those engine...!!!!!!!!!!!!!! works on all other Yamaha engines with single ram tilt system.!!!!!!)
• Honda with single-ram trim/tilt
• Suzuki with single-ram trim/tilt
• Evinrude with single-ram trim/tilt
• Johnson with single-ram trim/tilt
• Tohatsu with single-ram trim/tilt
• Kicker motors with power tilt systems.
