INSTALLATION INSTRUCTIONS FOR SINGLE-RAM POWER TRIM/TILT SYSTEMS

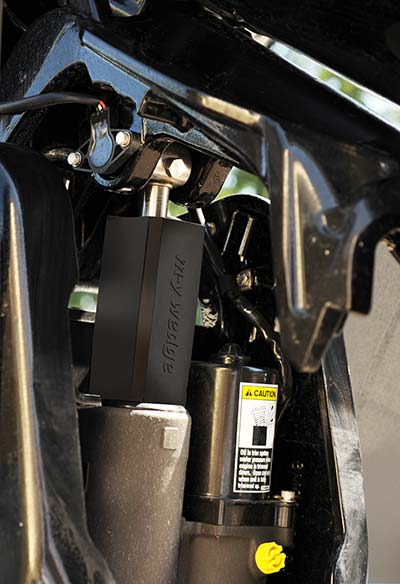

1. Trim outboard to up position.
2. Simply push the Universal m-y wedge on the power-tilt rod and it will pop or click into place.
3. Trim outboard down until the rubber begins to compress.
4. To remove Universal m-y wedge simply trim outboard to up position and remove.
5. Store Universal m-y wedge in any boat compartment for convenience.

NOTE: The Universal m-y wedge can be cut to size, if your outboard sits too high or you have problems with tilting your motor high enough to install the unit. Simply cut the Universal m-y wedge using a miter or hack saw. You normally don't need to cut off more than an inch.

WORKS ON:

• Mercury with single-ram trim/tilt
• Yamaha with single-ram trim/tilt (Will Not work on Yamaha's new 2023 150HP-250HP outboards, they have a new trim system on those engine...!!!!!!!!!!!!!! works on all other Yamaha engines with single ram tilt system.!!!!!!)
• Honda with single-ram trim/tilt
• Suzuki with single-ram trim/tilt
• Evinrude with single-ram trim/tilt
• Johnson with single-ram trim/tilt
• Tohatsu with single-ram trim/tilt
• Kicker motors with power tilt systems.

Mercury Verado 6, 8, 10-cylinders use TWO Universal m-y wedge units.

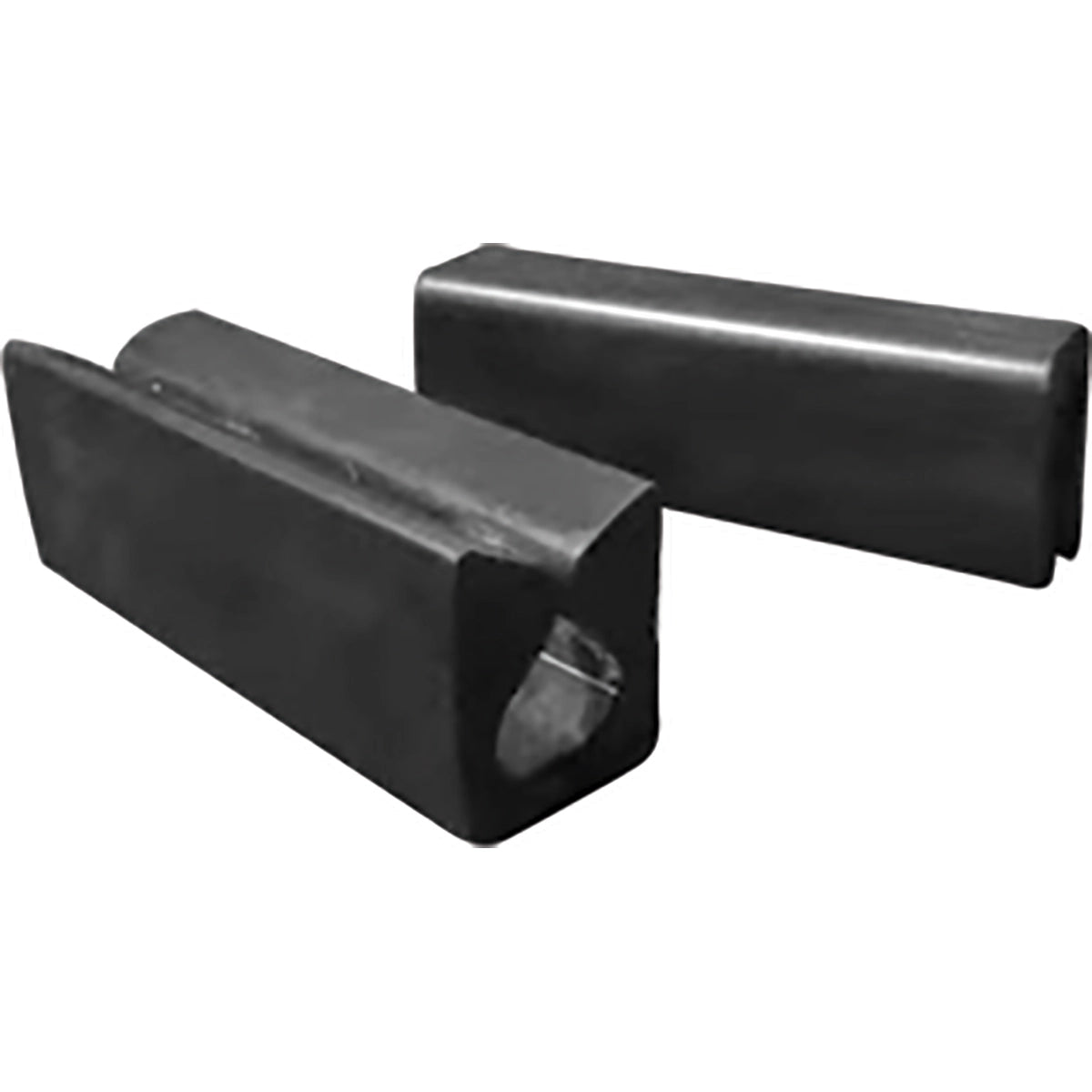

PAIR OF CENTERING CLIPS



Recommended for motors with Dual/Hydraulic Steering.  Keeps your engine straight during trailering.  Fits most cylinder rods on engines manufactured in 1997 and newer.  Snaps over outboard's hydraulic steering cylinder rods.  Helps keep engine centered during transport.  Made of EPDM Rubber.

Position the motor in the straight forward steering position with an equal amount the hydraulic cylinder rods extending from each side of the cylinders.

UV Protected. Saltwater Safe.
